In today’s trend of increased density in server environments, the design of connections for PCB circuits and various modules has become increasingly crucial. To make module connections and installations more convenient and efficient, Fivetech has introduced SMT Pins and SMT Studs. Which not only offers precise and rapid positioning function but also ensures successful mating of components or connectors.
SMT Stud

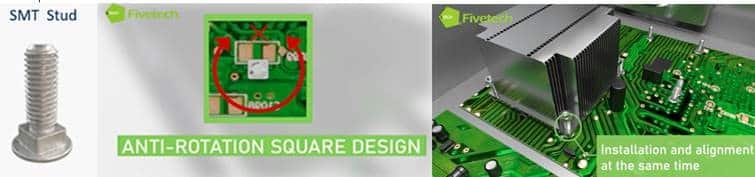

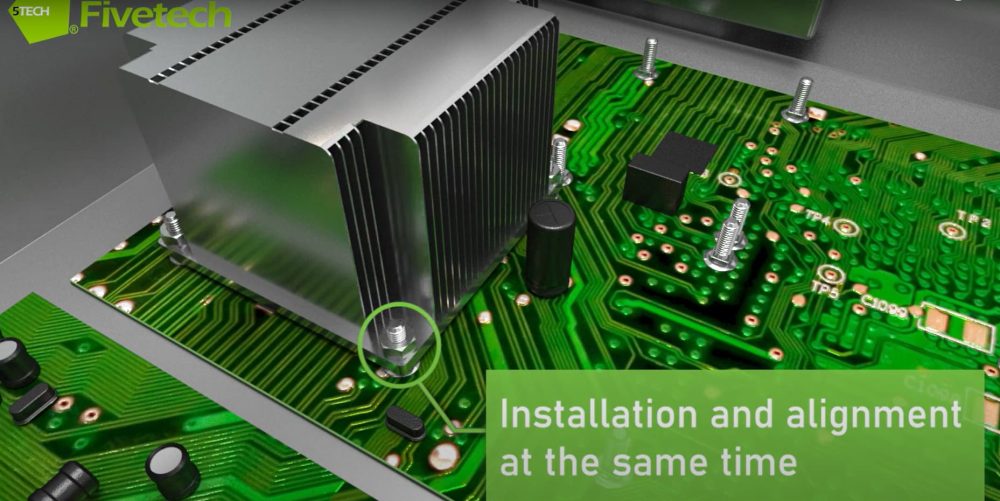

The SMT Stud uses fully automated SMT soldering technology to adhere to the board, providing precise guided installation and direct locking functionality. By simply fastening the locking nut, cooling systems, fans, or other modules can be applied to PCB boards. In comparison to single screw and nut solutions, this approach not only reduces the risk of losing parts but also enhances operational ease and locking efficiency. Additionally, we have incorporated a special square anti-rotation design at the bottom of the product to ensure that the parts are maintained in the same direction without rotating.
SMT Pin
The mechanisms design of SMT Pin aims to provide higher computational density, energy efficiency, and shareability, all following the trend of highly modular design. SMT pins assist in guiding alignment and are suitable for vertically orienting and fixing circuit boards. This allows different modules to be easily and accurately positioned in designated locations, thereby enhancing the efficiency of assembly operations. Fivetech has a special cutting-edge design at the bottom, enabling directional module applications during the SMT Pick and Place process. This facilitates quick alignment, making installation more convenient and efficient.
Surface Mount Technology

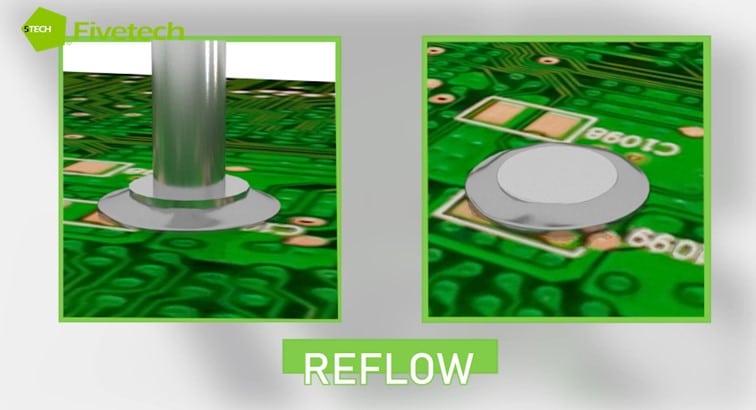

Fivetech utilizes Surface Mount Technology (SMT) for the installation of both SMT Pins and SMT Studs onto PCB boards. This production method involves placing the components onto corresponding solder pads using a vacuum nozzle. The solder is then melted and cooled to secure the components in place.
This manufacturing approach not only addresses concerns related to stamping but also reduces the wastage rate of PCB boards. Fully automated production further minimizes labor costs, enhances production efficiency, and improves product reliability.
Fivetech offers a range of innovative quick-release mechanisms that bring unexpected time and effort savings to your chassis modules, optimizing work efficiency. We welcome discussions on your innovative ideas!
❏ Further Reading | SMT Angle Guide Pin – Meant For Precise Positioning
Five Advantages of Fivetech SMT Pin & SMT Stud:
–Precise quick positioning function ensures successful alignment of various modules.
–SMT Stud can be directly locked with a nut, significantly enhancing operational ease and locking efficiency.
–SMT Pin offers accurate alignment capability, suitable for vertical board installation.
–Special bottom design prevents component rotation affecting precision, providing 100% reliability.
–SMT automatic soldering technology enhances product stability and production efficiency.
–Customized design services are available.
For more information of Fivetech SMT Pin & SMT Stud↓↓↓
Transform your assembly process with Fivetech now!
