With the popularity of 5G, cloud giants are accelerating the construction of data centers around the world to the growth in high-speed computing. The server industry is becoming more and more prosperous. In addition to various types of modules on the board or the corresponding cooling mechanism, how to achieve faster and higher performance is very important for a server and even an entire data center. The most efficient module design has become the primary development goal of various manufacturers today.

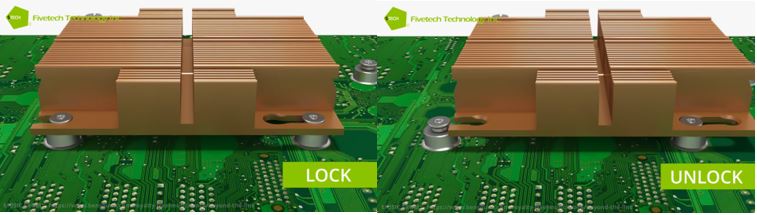

Fivetech SMT Spring Lock provides a faster solution for the assembly of thermal cooling modules on the server board: As shown in the picture below, the thermal cooling module is fixed on the PCB through a single fastener – SMT Spring Lock, which can be positioned to the PCB in just one second. The automatic clamping force of SMT Spring Lock provides an up and down anti-loose function, saves time in installation, facilitates disassembly, and can perfectly absorb tolerances so that the board and the thermal cooling module can achieve balanced positioning.

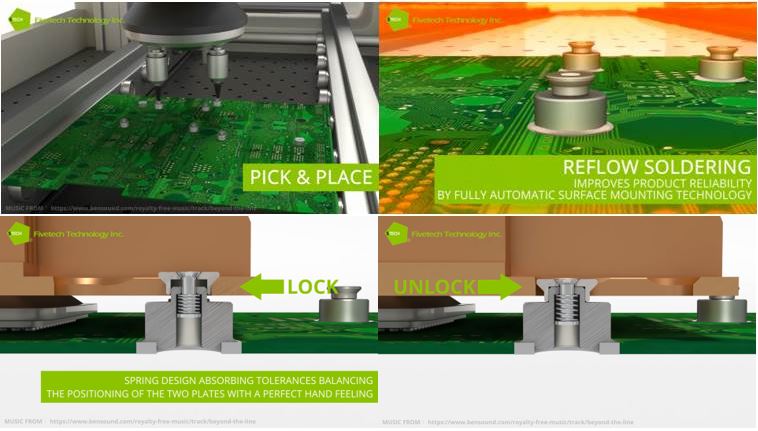

SMT Spring Lock adopts fully automatic Surface Mount Technology, uses a vacuum nozzle to pick up the SMT Spring Lock, and goes through the tin heating and cooling process to complete the installation. Fully automated production improves stability and production efficiency, reduces labor costs, and improves product reliability.
In terms of application, Spring Lock can also be used on the metal surface of server chassis. With a wide range of applications, we can make different customized arrangements according to different design requirements.
Five Advantages of SMT Spring Lock：
– Anti-loose function combines the positioning of two boards and provides clamping force
– Spring design absorbs tolerances, offering a perfect hand feeling
– Automatic production improves stability and production efficiency, reduces labor costs
– Fully automated installation process improves product reliability
– Wide range of applications, meanwhile specifications can be customized
